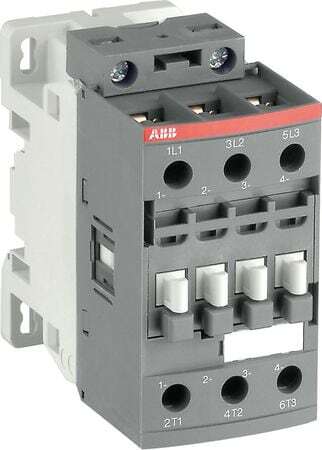

AF26Z-30-00-23 100-250VACDC MAG
Vanaf €
Levertijd +- 27 werkdagen
Omschrijving:
GTIN: 3471523114135
Magneetschakelaar 3P - AC3-26A-11kW(400V) - Hulpcontact: 0 - Spoelspanning: 100-250VAC-50/60Hz / 100-250VDC - Spoelcode 23 - Met laag spoelvermogen voor PLC aansturing - Verbruik inkomen: 12 t/m 16 W, verbruik houden: 1,7 W - Electrische aansluiting: Schroef - DIN-rail of schroefmontage - Standards: IEC/EN 60947-5-1, UL 508, CSA C22.2 Nr 14.
Bedrijfsspanning bij AC 50 Hz: 690 - 690
Hoogte: 86
Bedrijfsspanning bij AC 60 Hz: 690 - 690
Diepte: 86
Breedte: 45
Nom. stuurspanning bij AC 50 Hz: 100 - 250
Nom. stuurspanning bij AC 60 Hz: 100 - 250
Nom. stuurspanning bij DC: 100 - 250
Type stuurspanning: AC/DC
Nom. bedrijfsstroom Ie bij AC-1, 400 V: 45
Nom. bedrijfsstroom Ie bij AC-3, 400 V: 26
Nom. vermogen bij AC-3, 400 V: 11
Nom. vermogen NEMA: 7.457
Aansluitwijze hoofdstroomcircuit: Schroefaansluiting
Aantal hoofdcontacten als maakcontact: 3
Magneetschakelaar 3P - AC3-26A-11kW(400V) - Hulpcontact: 0 - Spoelspanning: 100-250VAC-50/60Hz / 100-250VDC - Spoelcode 23 - Met laag spoelvermogen voor PLC aansturing - Verbruik inkomen: 12 t/m 16 W, verbruik houden: 1,7 W - Electrische aansluiting: Schroef - DIN-rail of schroefmontage - Standards: IEC/EN 60947-5-1, UL 508, CSA C22.2 Nr 14.
Bedrijfsspanning bij AC 50 Hz: 690 - 690
Hoogte: 86
Bedrijfsspanning bij AC 60 Hz: 690 - 690
Diepte: 86
Breedte: 45
Nom. stuurspanning bij AC 50 Hz: 100 - 250
Nom. stuurspanning bij AC 60 Hz: 100 - 250
Nom. stuurspanning bij DC: 100 - 250
Type stuurspanning: AC/DC
Nom. bedrijfsstroom Ie bij AC-1, 400 V: 45
Nom. bedrijfsstroom Ie bij AC-3, 400 V: 26
Nom. vermogen bij AC-3, 400 V: 11
Nom. vermogen NEMA: 7.457
Aansluitwijze hoofdstroomcircuit: Schroefaansluiting
Aantal hoofdcontacten als maakcontact: 3
Merk:
ABB COMPONENTEN
Serie:
A serie
