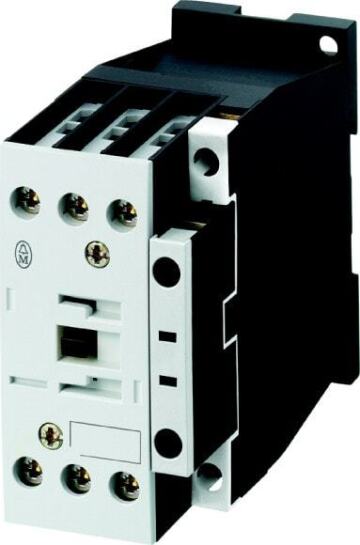

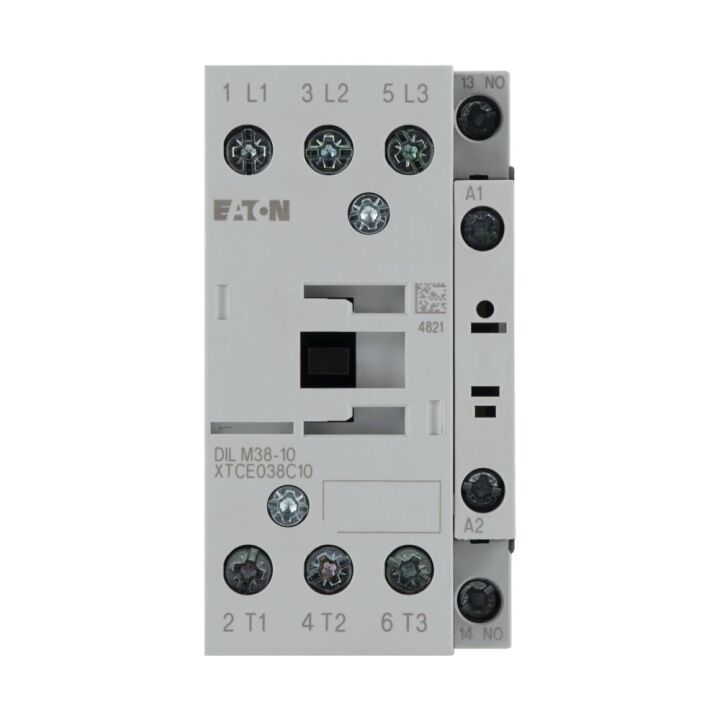

EATON DILM38-10(RDC240)
Vanaf €
Levertijd +- 24 werkdagen
Omschrijving:
GTIN: 4015081120017
Magneetschakelaar DILM38-10(RDC240) (200-240VDC), 18,5kW, 1m, 0v
Diepte: 97
Breedte: 45
Hoogte: 85
Bedrijfsspanning bij AC 60 Hz: 24 - 690
Bedrijfsspanning bij AC 50 Hz: 24 - 690
Nom. stuurspanning bij AC 50 Hz: 0 - 0
Nom. stuurspanning bij AC 60 Hz: 0 - 0
Nom. stuurspanning bij DC: 200 - 240
Type stuurspanning: DC
Nom. bedrijfsstroom Ie bij AC-1, 400 V: 45
Nom. bedrijfsstroom Ie bij AC-3, 400 V: 38
Nom. vermogen bij AC-3, 400 V: 18.5
Nom. bedrijfsstroom Ie bij AC-4, 400 V: 15
Nom. vermogen bij AC-4, 400 V: 7
Nom. vermogen NEMA: 14.9
Aantal hulpcontacten als maakcontact: 1
Aansluitwijze hoofdstroomcircuit: Schroefaansluiting
Aantal hoofdcontacten als maakcontact: 3
Magneetschakelaar DILM38-10(RDC240) (200-240VDC), 18,5kW, 1m, 0v
Diepte: 97
Breedte: 45
Hoogte: 85
Bedrijfsspanning bij AC 60 Hz: 24 - 690
Bedrijfsspanning bij AC 50 Hz: 24 - 690
Nom. stuurspanning bij AC 50 Hz: 0 - 0
Nom. stuurspanning bij AC 60 Hz: 0 - 0
Nom. stuurspanning bij DC: 200 - 240
Type stuurspanning: DC
Nom. bedrijfsstroom Ie bij AC-1, 400 V: 45
Nom. bedrijfsstroom Ie bij AC-3, 400 V: 38
Nom. vermogen bij AC-3, 400 V: 18.5
Nom. bedrijfsstroom Ie bij AC-4, 400 V: 15
Nom. vermogen bij AC-4, 400 V: 7
Nom. vermogen NEMA: 14.9
Aantal hulpcontacten als maakcontact: 1
Aansluitwijze hoofdstroomcircuit: Schroefaansluiting
Aantal hoofdcontacten als maakcontact: 3
Merk:
EATON
