FLUK SMFT-1000/PRO MULTIFUNCTION PV KIT

GTIN: 0195112077856

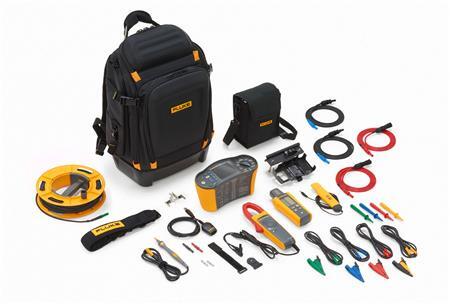

The Fluke SMFT-1000/PRO multifunction tester with I-V curve tracing tests that PV systems are performing to their optimal power output as well as operating safely . SMFT-1000/PRO is designed for PV professionals that provide installation, commissioning and maintenance services to systems that operate at 1000 V DC or under and provides a complete PV testing solution that conforms to IEC 62446-1 standards. Measurement data from solar site installation and commissioning testing can be easily imported, organized and analyzed for effortless reporting through Fluke?s TruTest? Software without having to bring a laptop on-site. The SMFT-100/PRO includes also Advanced TruTest? Software and MC4 Solar Clamp Test Lead Set.
Breedte: 125
Beschermingsgraad (IP): IP40
Isolatieweerstandsmeting: 50 - 1000
Type voeding: Batterij
Gewicht incl. accupack: 1.4
Max. spanning meetcircuitcategorie: 1000
Uitvoering van de interface: USB
Meting Maximaal Vermogen Punt (MPP): Ja
Stroom-voltage curve registratie: Ja
Continuïteitsmeting stroom: 200 - 400
Gewicht: 1.4
Hoogte: 100
Conversie naar STC: Ja
Compensatie meetleidingsweerstand: Handmatig
Continuïteitsmeting weerstand: 0.2 - 2000
Meetcircuitcategorie: CAT III
Meetwaardegeheugen: Ja
Isolatieweerstandsmeetbereik: 0.2 - 999
Aardlekmeting: Ja
Conversie naar NOCT: Ja
Module databank: Ja
Met display: Ja
Lengte: 250
Temperatuurmeting: Ja
Externe spanningsdetectie: Ja
Kortsluitstroommeting (lsc): 0.2 - 20
Methode voor I-V curve tracing: Overig
Nullastspanningsmeting (Uoc): 5 - 1000
Polariteitstest: Ja
Meting van zonnestraling: Ja
Omvormer rendementsmeting: Ja
Voedingsmeting: AC/DC
Vulfactorberekening: Ja

Merk: FLUKE
