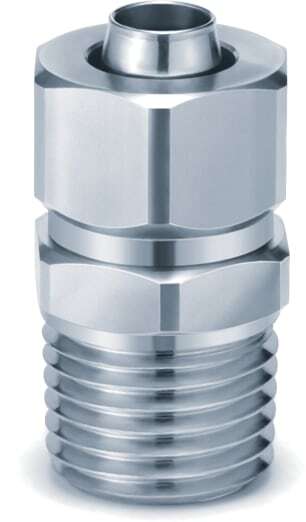

MALE CONNECTOR 6/4MM R1/4" SUS316

GTIN: 5713031050450
Series KFG2 fittings can operate with ambient operating fluid temperatures of -65 to 260�C (swivel elbow type -5 to 150�C). With their stainless steel 316 construction and unique non-rubber seal insert connection, these grease-free fittings offer high levels of corrosion resistance, and can be used with numerous piping materials including FEP, PFS, soft and regular nylon, polyurethane and polyoelfin. Available in male elbow, male connector, male branch tee, straight union, union tee, bulkhead union, union elbow, swivel elbow and female connector options, the KFG2 fittings can accommodate tube sizes from 4mm to 16mm and 1/8" to 1/2" with port sized thread connections from R1/8 to R1/2 and 1/8NPT to 1/2NPT. Contact Solar if you are interested in other variations
Aansluiting 3: 1/4"
Materiaal loopvlak: RVS 316 (1.4401)
Werkdruk: -1 - 10
Type schroefdraad: R
Omgevingstemperatuur: -5 - 150
Materiaal corpus: RVS 316 (1.4401)
Pasvorm: Insteek (push-fitting)
Uitvoering: Rechte koppeling
Aansluiting 1: 6 mm
Aansluiting 2: 4 mm
Uitvoering: Zacht nylon
Vloeistoftemperatuur: -5 - 150
Dekhengst: RVS 316 (1.4401)
Chuck: RVS 316 (1.4401)
Gids 1: RVS 316 (1.4401)
Gids 2: RVS 316 (1.4401)
Vloeistof: Lucht

Merk: SMC

Serie: KFG2
