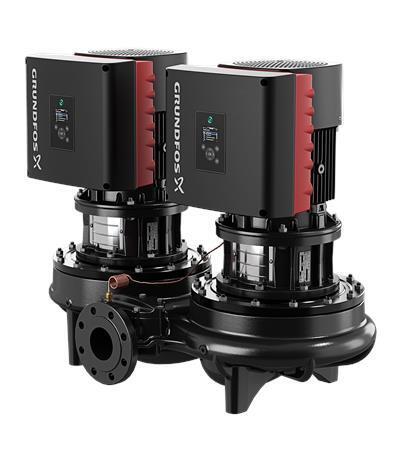

TPED 100-120/2 S-A-F-A-BQQE-ID1
Vanaf €
Levertijd +- 93 werkdagen
Omschrijving:
GTIN: 5712607368937
Pompen zijn enkeltraps, kortgekoppelde in-line centrifugaalpompen met mechanische asafdichting
Materiaal pomphuis: Gietijzer
Kwaliteitsklasse pomphuis: Gietijzer EN-GJL-250 (GG 25)
Volumestroom (BEP): 72.8
Druk bij volumestroom (BEP): 76.37
Max. debiet: 72.8
Max. opvoerhoogte: 12
Dubbelpomp: Ja
Elektrische aansluiting: Aansluitklemmen
Aantal fasen: 3
Frequentie: 50/60 Hz
Nom. stroom: 4.03
Afgegeven motorvermogen (P2): 2.2
Minimum Efficiëntie Index (MEI): 0.7
Isolatieklasse volgens IEC: F
Toerental: 2910
Toerenregeling motor: Ingebouwd
Type toerenregeling: Traploos
Communicatie: Ingebouwd en voorbereid
Met communicatie-interface RS-485: Ja
Aansluiting inlaatzijde: Flens
Nom. diameter aansluiting inlaatzijde: DN 100
Druktrap flens aansluiting inlaatzijde: PN 10
Aansluitstandaard inlaatzijde: EN 1092-2
Aansluiting perszijde: Flens
Nom. diameter aansluiting perszijde: DN 100
Druktrap flens aansluiting perszijde: PN 10
Aansluitstandaard perszijde: EN 1092-2
Inbouwlengte: 450
Beschermingsgraad (IP): IP55
Normmotor: Ja
Motor energie-efficiëntieklasse: IE5
Ondersteunt protocol voor PROFIBUS: Ja
Potentiaalvrij schakelcontact: Ja
Ondersteunt protocol voor EtherNet/IP: Ja
Interface signaal 0-10 V / 2-10 V: Ja
Interface signaal 0-20 mA / 4-20 mA: Ja
Interface signaal PT100 / PT1000 / PTC: Ja
Ondersteunt protocol voor Modbus TCP: Ja
Ondersteunt protocol voor Modbus RTU: Ja
Ondersteunt protocol voor BACnet MS / TP: Ja
Ondersteunt protocol voor BACnet IP: Ja
Ondersteunt protocol voor LON / LONWorks: Ja
Max. werkdruk: 10
Pompen zijn enkeltraps, kortgekoppelde in-line centrifugaalpompen met mechanische asafdichting
Materiaal pomphuis: Gietijzer
Kwaliteitsklasse pomphuis: Gietijzer EN-GJL-250 (GG 25)
Volumestroom (BEP): 72.8
Druk bij volumestroom (BEP): 76.37
Max. debiet: 72.8
Max. opvoerhoogte: 12
Dubbelpomp: Ja
Elektrische aansluiting: Aansluitklemmen
Aantal fasen: 3
Frequentie: 50/60 Hz
Nom. stroom: 4.03
Afgegeven motorvermogen (P2): 2.2
Minimum Efficiëntie Index (MEI): 0.7
Isolatieklasse volgens IEC: F
Toerental: 2910
Toerenregeling motor: Ingebouwd
Type toerenregeling: Traploos
Communicatie: Ingebouwd en voorbereid
Met communicatie-interface RS-485: Ja
Aansluiting inlaatzijde: Flens
Nom. diameter aansluiting inlaatzijde: DN 100
Druktrap flens aansluiting inlaatzijde: PN 10
Aansluitstandaard inlaatzijde: EN 1092-2
Aansluiting perszijde: Flens
Nom. diameter aansluiting perszijde: DN 100
Druktrap flens aansluiting perszijde: PN 10
Aansluitstandaard perszijde: EN 1092-2
Inbouwlengte: 450
Beschermingsgraad (IP): IP55
Normmotor: Ja
Motor energie-efficiëntieklasse: IE5
Ondersteunt protocol voor PROFIBUS: Ja
Potentiaalvrij schakelcontact: Ja
Ondersteunt protocol voor EtherNet/IP: Ja
Interface signaal 0-10 V / 2-10 V: Ja
Interface signaal 0-20 mA / 4-20 mA: Ja
Interface signaal PT100 / PT1000 / PTC: Ja
Ondersteunt protocol voor Modbus TCP: Ja
Ondersteunt protocol voor Modbus RTU: Ja
Ondersteunt protocol voor BACnet MS / TP: Ja
Ondersteunt protocol voor BACnet IP: Ja
Ondersteunt protocol voor LON / LONWorks: Ja
Max. werkdruk: 10
Merk:
GRUNDFOS
